PROPULSION DESIGNED TO TAKE YOU PLACES
ELECTRIC MOTORS
Our B15, SD17, and G22 motor systems are built to last, allowing you to enjoy your sailing adventures with reliability and peace of mind.
The time to go electric is now.
Our electric systems are designed by sailors, for sailors. Our systems are compatible with standard shaft configuration vessels and are aimed to make your adventures smarter, quieter and cleaner.

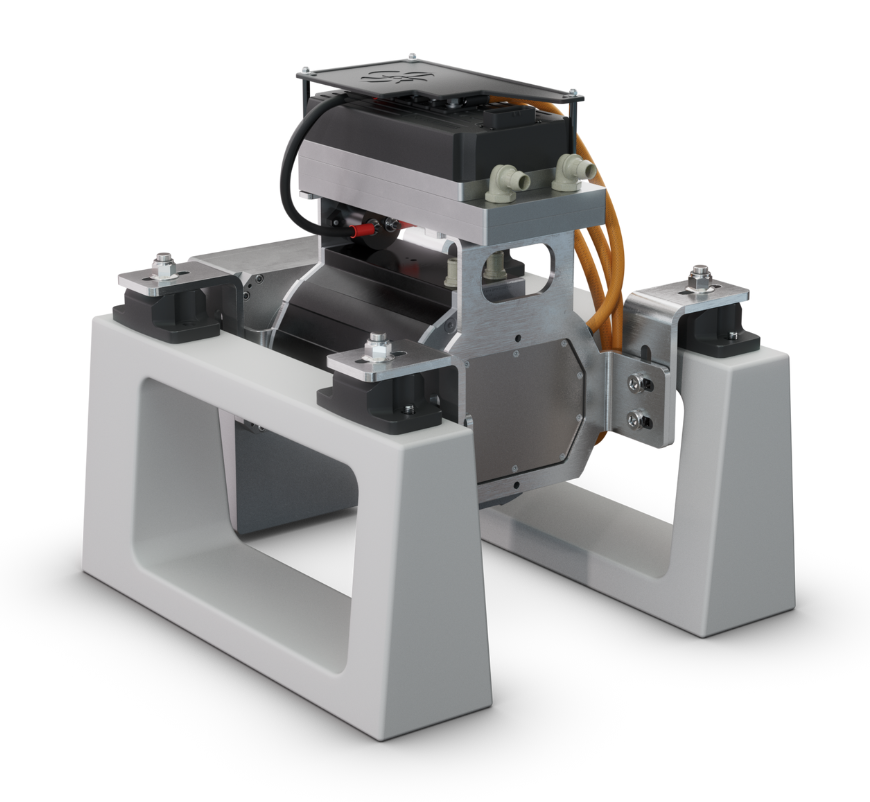

THE B15 Motor System
Our B15 Motor System is compatible with standard shaft configuration vessels and made for easy installation without compromising on durability or performance. This model replaces diesel engines up to 45HP. All 316 stainless construction, serviceable thrust bearings, no one off parts that are hard to find and an informative high quality display.
Starting at $9,750 USD
DETAILS
> 15kW motor system
> 48V
> 120nm torque
> Weight: 116lbs
> Output shaft speed 1250 RPM
> Belt drive gear reduction of 2:1
> Stainless steel motor frame and output shaft
> Serviceable shaft bearings
> Adjustable motor mount feet
> 434 shaft coupling
> *Liquid cooling motor optional
INCLUDES
> Display
> Distribution unit
> Livorsi throttle
> Wiring harness
> Key switch

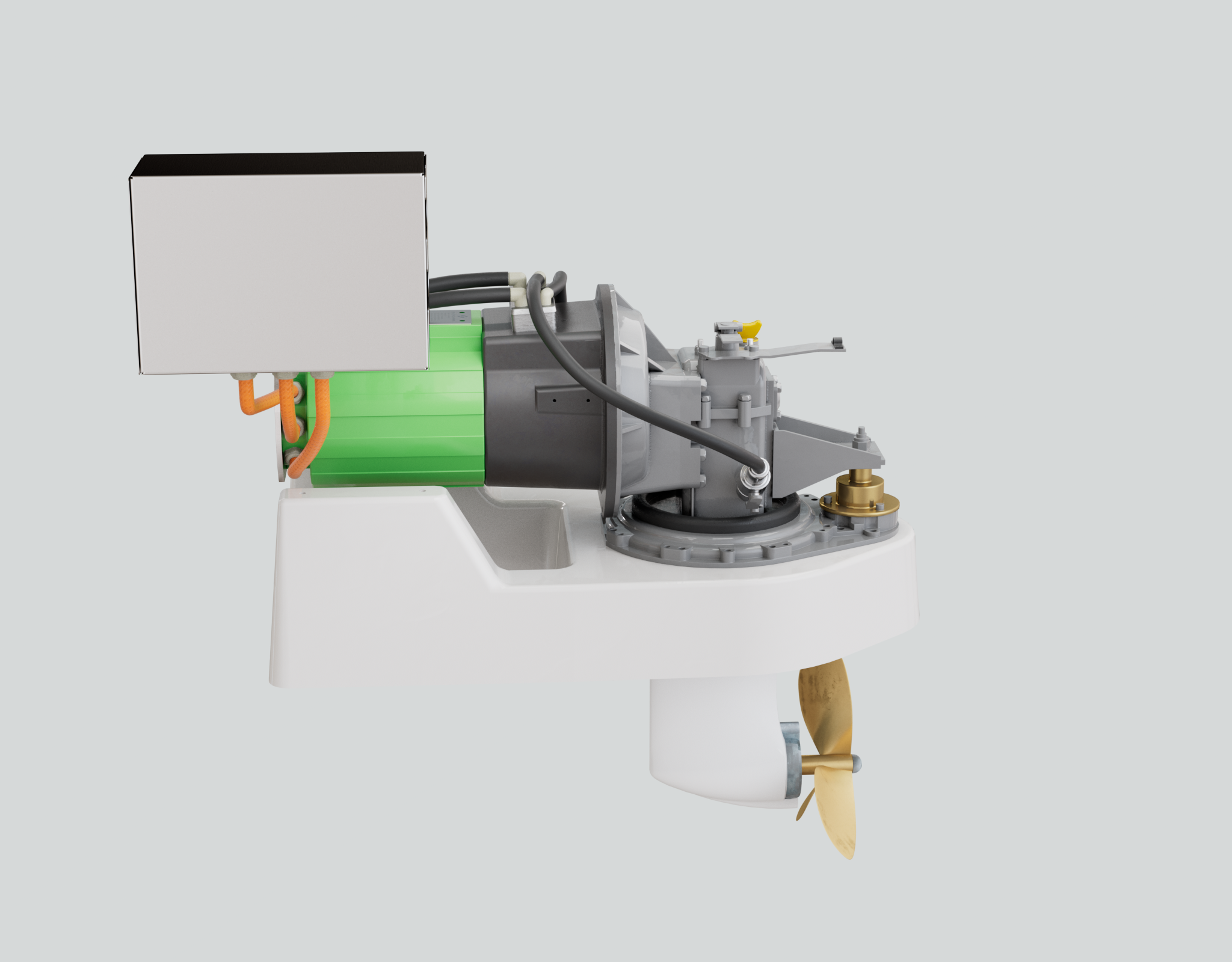

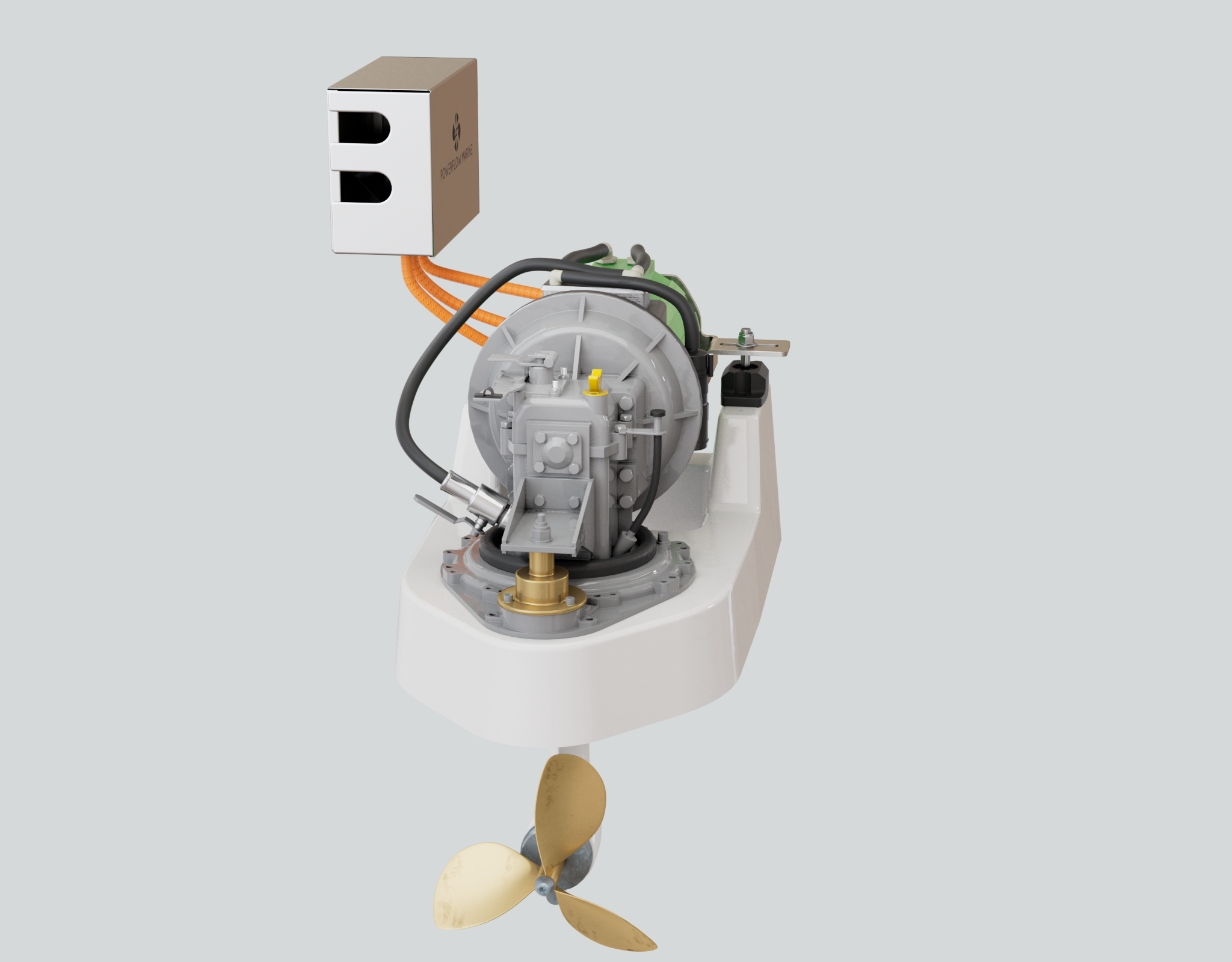

THE SD17 MOTOR SYSTEM
Our SD17 Motor System is compatible with the Yanmar SD60 saildrive, made for easy installation without compromising durability or performance. The cast aluminum housing adapts our electric motor the the SD60 with the same footprint as the diesel model it replaces. Integrating the cooling circuit & bulkhead mounted Power Unit. Includes our standard display, Livorsi throttle, and distribution unit.
Starting at $12,050 USD
DETAILS
> 17kW motor system
> 48V
> 171nm torque
> Weight: 128lbs w/o gear, 197lbs w/ gear
> Output shaft speed 920 RPM
> SD60 gear ratio of 2.23:1
> Integrated cooling circuit
> Shaft flex coupling
> Adjustable motor mount
> Bulkhead mounted Power Unit
INCLUDES
> Display
> Distribution unit
> Livorsi throttle
> Wiring harness
> Key switch

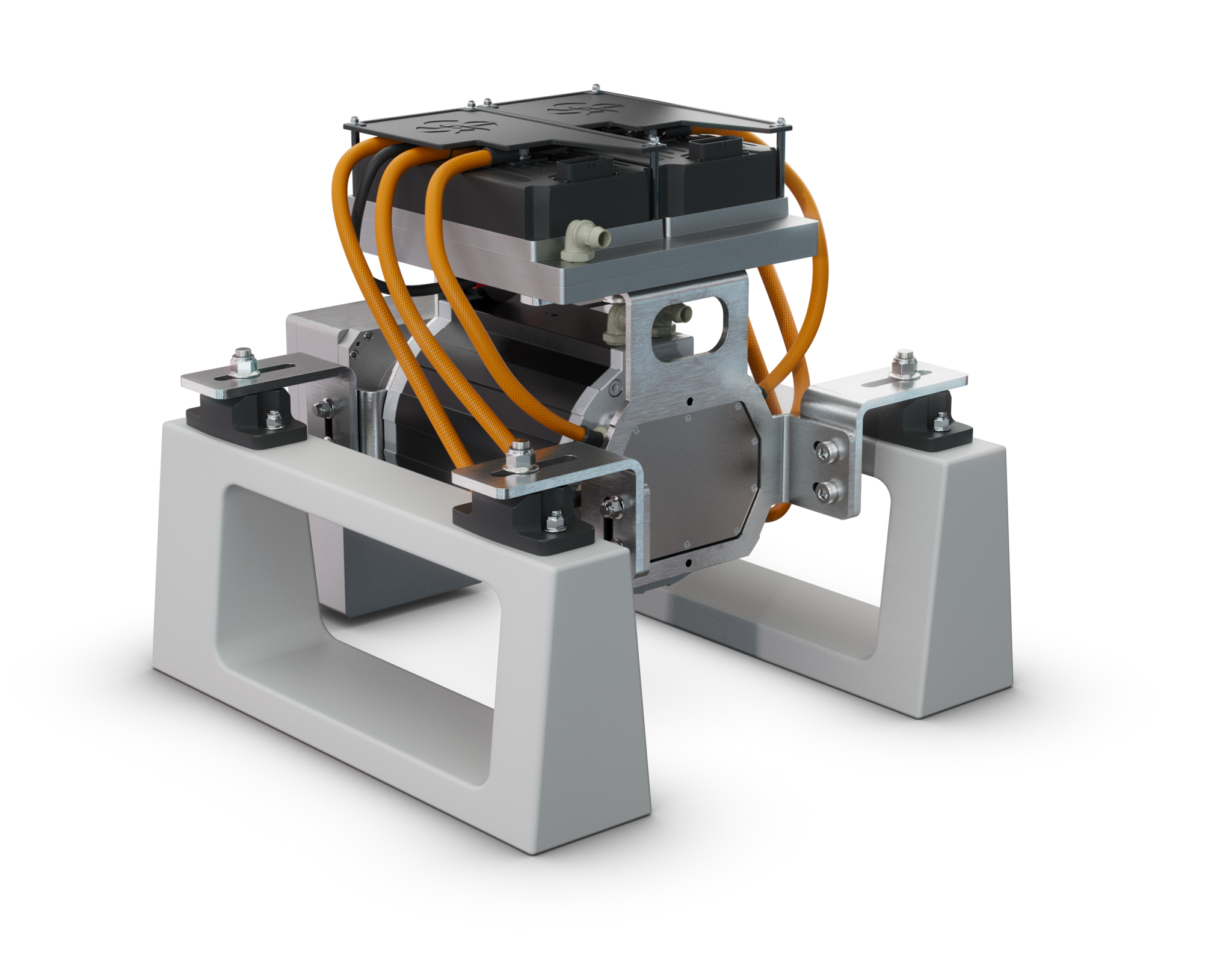

THE G22 Motor System
Our G22 Motor System is compatible with standard shaft configuration vessels and made for easy installation without compromising on durability or performance. This model replaces diesel engines up to 60HP. Includes 316 stainless steel frame construction, single stage gear reduction, adjustable motor mounts, informative high quality display and distribution unit. Additionally, the dual controllers have a cooling plate installed to connect the motor and controllers to the supplied cooling unit.
Starting at $13,780 USD
DETAILS
> 22kW 6 phase 48V motor
> 170nm torque
> Weight: 165lbs
> Output shaft speed 1290 RPM
> Single stage gear reduction 1.5:1
> Stainless steel frame
> Cooling system for motor and controllers
> Adjustable motor mount feet
>Output shaft coupling
INCLUDES
> Display
> Distribution unit
> Livorsi throttle
> Wiring harness
> Key switch
> Cooling unit
THE BENEFITS OF GOING ELECTRIC
Stop wasting time and money on your diesel engine.
And put it toward your next big adventure.
THE REGEN FUNCTION
All of our motors come with an adjustable regen function which allows you to choose how much resistance the prop is dragging (correlating to Amp input to the battery bank).
We tested 6 knot boat speed with the Eco*Star prop provides 250W of power. That increases drastically beyond the 6 knot speed. Over a 23 day passage the reported regen average was 7kWh a day.
THE SIMPLICITY
Our system is simple yet elegant. The display can replace the diesel instrument panel to provide all of the running information you need in one display.
Viewing your motor usage, battery data and secondary pages with in depth running information is easier than ever.
THE BEAUTY OF THE BASICS
The B15 has a belt drive gear reduction which has a bearing service life of 3000 hours. Once you’ve passed that hour mark and feel the need to replace the output shaft bearings the maintenance can be completed in 15 minutes.
All of our components are made of high quality marine grade materials. The motor has an IP68 rating and all wiring used is sealed for 100% corrosion resistance.
Ready to go electric?
We want to make sure you’re getting the right motor for your vessel.
To purchase one of our electric motor systems, head to our contact page, fill out a few questions, schedule your free consultation and we’ll get you on your way!
